Automated controls · BECS Technology

BECSys5 automated water-chemistry controls

Measurement, control, alarms, records, and secure remote visibility for commercial pools, installed and supported in New York State by FreyTech, a listed BECS Technology distributor.

Request a System AssessmentRead the FAQ

Problems solved

What changes when the controller is doing its job

No one knows what the water is doing after hours

Remote dashboards, email and text alarms, and trend graphs replace the drive to the pump room. Operators, supervisors, and facilities directors each see what they need.

Chemistry drifts under load

Continuous pH and ORP control, with optional direct free-chlorine PPM control, holds setpoints through practices, meets, lessons, and open swims instead of catching up the next morning.

Records are a scramble

One year of readings at one-minute resolution and one year of events are stored on the controller. Reports in BECSys Live summarize readings, alarms, and setpoint changes for review.

Feed equipment runs without safeguards

No-flow feed lockout, programmable failsafe overfeed timers, sanitizer lockout on pH alarm, and an emergency-off function are built in. The optional ChemLock adds an independent, UL 508A-approved interlock.

The equipment room is a black box

Optional monitoring of system flow, pressures, vacuum, chemical inventory, tank levels, and turnover, plus optional control of VFDs, UV, ozone, heaters, and makeup water, brings the rest of the room onto one screen.

One person holds all the knowledge

Three-level access codes, logged parameter changes, documented setpoints, and hands-on training from FreyTech mean the system survives staff turnover.

Monitoring and control

Standard and optional capabilities

Every capability below is stated in BECS Technology's published BECSys5 literature. Exact capabilities depend on the sensors, relays, and interfaces configured for your facility.

Standard on every BECSys5

Included

  • pH, ORP, and temperature sensors with flow switch and machined flow cell
  • Four solid-state relay outputs (expandable to 19 with optional relay modules)
  • Gigabit Ethernet with email and text-message alarm notification
  • BECSys Live remote access at no additional fee, plus BECSys for Windows
  • One year (365 days) of 1-minute readings and one year of event history in non-volatile memory
  • Three-level access codes for operator, supervisor, and administrator functions
  • NEMA 4X (IP66) glass-reinforced polycarbonate enclosure; 115/230 VAC, 50/60 Hz

Configured to your point list

Optional

  • Free, total, and combined chlorine (true PPM) monitoring and control
  • Total alkalinity monitoring and control with the BECSys Alkalinity Meter
  • Conductivity/TDS, turbidity, system flow, pressures, vacuum, and total dynamic head
  • Chemical inventory and tank-level monitoring; surge-tank autofill and makeup-water control
  • Patented VFD recirculation-pump control (requires 4–20 mA output option)
  • Heater on/off with fireman cycle, UV (combined-chlorine) control, ozone feed control, TDS bleed
  • Building-management interfaces: Modbus TCP/IP, BACnet, Metasys N2, LonWorks
  • Digital test-kit upload from SpinTouch and Lumiso kits; Wi-Fi

Safety functions

  • No-flow alarm with feed lockout and flow-restored delay
  • Programmable failsafe overfeed timers (1-minute increments, up to 18 hours)
  • Sanitizer feed lockout on pH alarm
  • Emergency-off function
  • Optional BECSys ChemLock: an independent, UL 508A-approved chemical-feed interlock tied to the circulation pump

Certification and warranty

NSF Certified and Listed to NSF/ANSI Standard 50; ETL Listed to ANSI/UL 61010-1 (per BECSys5 Technical Data Sheet TDS-4262).

Manufacturer warranty as published by BECS: 5 years electronics; 2 years pH, ORP, and temperature sensors; 1 year optional sensors and flow cell. FreyTech guarantees its own installation labor separately; see warranty coordination.

Sources: BECSys5 brochure (SLS-4333-H); BECSys5 Technical Data Sheet TDS-4262 (available from FreyTech on request).

Remote visibility and alarms

BECSys Live: see every pool from anywhere, securely

BECS Technology's remote-access service is included with BECSys5 at no additional fee. It gives operators, supervisors, and facilities directors the same live view of dashboards, graphs, reports, and alarms.

  • Included with BECSys5 and BECSys7 at no additional fee or subscription (BECSys3 requires the Communications option)
  • Two-factor authentication on all user accounts
  • End-to-end message encryption from browser to controller
  • EZConnect: no VPN, port forwarding, or public IP address required
  • Works from any current browser on PC, Mac, tablet, or phone
  • Dashboards, graphs, and reports covering alarm patterns, parameter changes, test-kit logs, and water-quality readings
  • Unlimited controllers and groups per account, so districts and campuses can see every body of water in one place

Alarm emails and text messages are sent by the controller itself through its Ethernet connection; BECSys Live provides the remote view. Source: BECSys Live brochure (SLS-6105-A).

Reporting and operating records

What you can show

  • Readings history at one-minute resolution for a full year, stored on the controller without a battery
  • Event history: alarms, setpoint and parameter changes, access-code use
  • Digital test-kit readings uploaded from SpinTouch and Lumiso kits alongside controller data
  • BECSys Live reports summarizing alarm patterns, parameter changes, test-kit logs, and water-quality readings

These records supplement, not replace, New York's required daily operation record.

Equipment-room integration

Where the controller sits in the loop

The controller reads a sample stream from the recirculation loop, drives chemical feed with interlocks, and can monitor or control other equipment-room functions depending on configuration.

Commercial pool recirculation loop with chemical control pointsWater leaves the pool through the main drain and gutter, passes the pump and filter, is sampled by the controller's flow cell, receives chemical from the feed system, is heated, and returns to the pool. The controller reads the flow cell and drives the feeder; a remote user views the controller over the network.PoolPumpFilterFlow cellpH · ORP · ClBECSys5measure · control · logChemicalfeedPulsar / pumpsHeaterRemoteBECSys LiveRecirculationSample lineControl signalNetwork
Simplified schematic. Actual sensing points, interlocks, and feed locations are set during design and commissioning for each facility.

Feed control

Four solid-state relays standard, expandable to 19. Sanitizer, pH, and auxiliary feeds with time-proportional control and failsafe limits. Drives Pulsar Precision feeders and metering pumps.

Circulation and filtration

Optional flow, pressure, vacuum, and total-dynamic-head monitoring; patented VFD recirculation-pump control with the 4–20 mA output option. Automatic filter backwash is a BECSys7 feature.

Secondary treatment and heating

Optional UV (combined-chlorine) control, ozone feed control based on ORP and/or PPM, heater on/off with fireman cycle, TDS bleed, and surge-tank autofill.

Building systems

Optional Modbus TCP/IP, BACnet, Metasys N2, and LonWorks interfaces to bring pool chemistry into the building management system.

Operator continuity

Three-level access codes, logged changes, and documented setpoints. FreyTech leaves a commissioning record and trains current and future staff.

Family fit

  • BECSys3: Entry pH/ORP controller with a two-line display; optional PPM sensor and optional communications for BECSys Live.
  • BECSys5: Expandable control, monitoring, and integration for most institutional pools. Ethernet, alarms, logging, and BECSys Live standard.

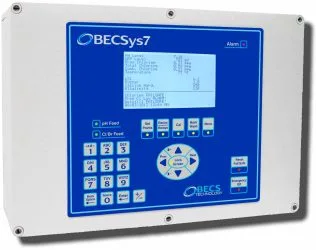

  • BECSys7: Adds automatic filter backwash for up to 16 filters, five mechanical relays, and UV/heater interfaces for the largest mechanical rooms.

Upgrade and modernization scenarios

Four common starting points

  1. Replace an obsolete controller

    Discontinued models, failing electronics, no communications. A BECSys5 typically installs on the existing sample loop and feed equipment, with new probes and a machined flow cell.

    You receive: Like-for-like replacement, usually 1–2 days on site.

  2. Add remote visibility to a working system

    Older BECS or other controllers that control adequately but cannot be seen remotely. Upgrade to BECSys5 for Ethernet, alarms, logging, and BECSys Live.

    You receive: Alarm recipients, dashboards, and report access configured.

  3. Integrate a renovated mechanical room

    Pump, VFD, filter, UV, or heater replacements in a capital project. Define the point list so the controller monitors and, where appropriate, controls the new equipment.

    You receive: Point list, sequence of operation, submittals.

  4. Standardize across several pools

    Districts, campuses, Ys, and municipalities with multiple bodies of water. One controller per pool, one BECSys Live account for the whole portfolio.

    You receive: Consistent setpoints, alarm policy, and training.

Installation, commissioning, training, local support

How FreyTech delivers a BECSys5

Installed by FreyTech's own technicians and supported from our Monroe County office. The controller is only as good as the sample loop, the commissioning, and the people trained to run it.

  1. Assessment

    Sample line, flow cell location, feed equipment, electrical, network access, and storage are reviewed on site. We identify anything that would undermine a new controller.

  2. Configuration

    Standard and optional sensors, relays, communications, and interfaces are specified against your point list. Submittals provided to your engineer when required.

  3. Installation

    FreyTech technicians mount the controller and flow cell, connect feed outputs and interlocks, and bring the network online. Work is scheduled around the pool calendar.

  4. Commissioning

    Probes calibrated against manual tests, setpoints and alarm limits entered, failsafe timers and no-flow lockout verified, alarm delivery tested to each recipient, and a settings record left with you.

  5. Training

    Operators learn daily checks, calibration, alarm response, and BECSys Live. Supervisors learn access levels and reports. Written procedures are left on site.

  6. Support

    Phone support, preventive maintenance visits for calibration and probe replacement, and BECS warranty coordination. Remote diagnostics through BECSys Live reduce site visits.

Request a System AssessmentService and maintenance plans

Explore compatible chemical-delivery approaches

Chemical Delivery and Chlorination category

Other BECS Technology equipment

All BECS equipment in the catalog

BECSys5 frequently asked questions

Do we need a separate controller for each pool?

Yes. A BECSys5 controls one body of water. Facilities with a lap pool, therapy pool, and spa typically install one controller per pool and view them together in BECSys Live.

Does BECSys5 replace daily testing and operating records in New York?

No. Under 10 NYCRR 6-1.11 and 6-1.21, manual DPD testing and the State's daily operation record remain required. The controller's one-year log and BECSys Live reports supplement those records and make them easier to verify. The State code allows electronic monitoring 'in addition to the test kit' (6-1.29 item 11.8).

Is BECSys5 NSF/ANSI 50 certified?

BECS Technology's technical data sheet states BECSys5 is NSF Certified and Listed to NSF/ANSI Standard 50 and ETL Listed to UL 61010-1. We can provide the listing documentation for your engineer or health department.

Can it control free chlorine directly rather than by ORP?

Yes, with the optional free-chlorine (PPM) sensor. Many facilities control on ORP with a PPM sensor for monitoring; others control directly on PPM. We recommend the approach based on your water, bather load, and operator preferences.

What does remote access cost?

BECS states that BECSys Live is included with BECSys5 with no additional fees or monthly subscription. Your facility's internet connection and network policy are the only requirements.

Can alarms go to more than one person?

Yes. The controller sends email and text-message alarm notifications through its Ethernet connection, and BECSys Live shows alarm status remotely. We set up the recipient list and escalation during commissioning.

Can BECSys5 talk to our building management system?

Optional Modbus TCP/IP, BACnet, Metasys N2, and LonWorks interfaces are available. Integration scope is defined with your controls contractor during design.

How long does a replacement take?

A like-for-like controller replacement on an existing flow cell and feed equipment is typically completed in one to two days of on-site work, followed by a stabilization period and operator training. Adding sensors, relays, or new feed equipment extends the scope.

What happens if the internet goes down?

The controller keeps controlling. Local control, interlocks, and logging run on the controller itself; remote visibility resumes when the connection returns.

How does FreyTech support the system after installation?

Commissioning documentation, operator training, phone support, preventive maintenance visits for calibration and probe replacement, and warranty coordination with BECS. FreyTech is listed by BECS Technology as its New York distributor.

BECSys is a trademark of BECS Technology, Inc. Product capabilities are summarized from BECS Technology literature accessed September 2026 and depend on configuration. Confirm current specifications with FreyTech before design.

Next step

Find out what a BECSys5 upgrade would involve at your facility

Send us your current controller, feed system, pool volumes, and what is not working. We will review it and recommend a scope, staged if that fits your budget cycle.
