Pumps, Circulation and Flow Control

Name: Frey Technologies
Address: 356 Macedon Center Road, Fairport, NY, 14450, US
Telephone: 1-800-724-2770

Circulation is the heartbeat of the equipment room: the recirculation pump moves water through filtration, treatment, and heating at the turnover rate the code requires. Pump selection, variable-speed control, strainers, and flow monitoring determine energy use, filter performance, and how well the chemistry controller can do its job.

Request a Facility Assessment See products

FreyTech evaluates pumps and flow control as part of the whole loop, coordinating with the engineer of record on flow, head, and turnover, and integrating VFD control and flow monitoring with BECSys controllers where the facility wants them. FreyTech represents Aurora, Pentair and Grundfos commercial pumps through ASC Pumping Equipment, Inc.

Common facility applications

Natatoriums and aquatic centers
Municipal and school pools in renovation
Facilities pursuing energy reduction

Browse by facility: Municipal · Colleges · Hospitality · Waterparks · Design teams · YMCA / Community · K–12 Schools · Healthcare · Camps / Seasonal

Flow and head

Engineer-confirmed design flow and total dynamic head under New York turnover requirements.

Variable speed

VFD control can match speed to demand within code; BECSys5 offers patented VFD recirculation control as an option.

Materials and serviceability

Stainless, bronze, or composite wet ends; seal access; strainer basket size and clearance.

Aurora (a Pentair brand)Pumps, Circulation and Flow Control

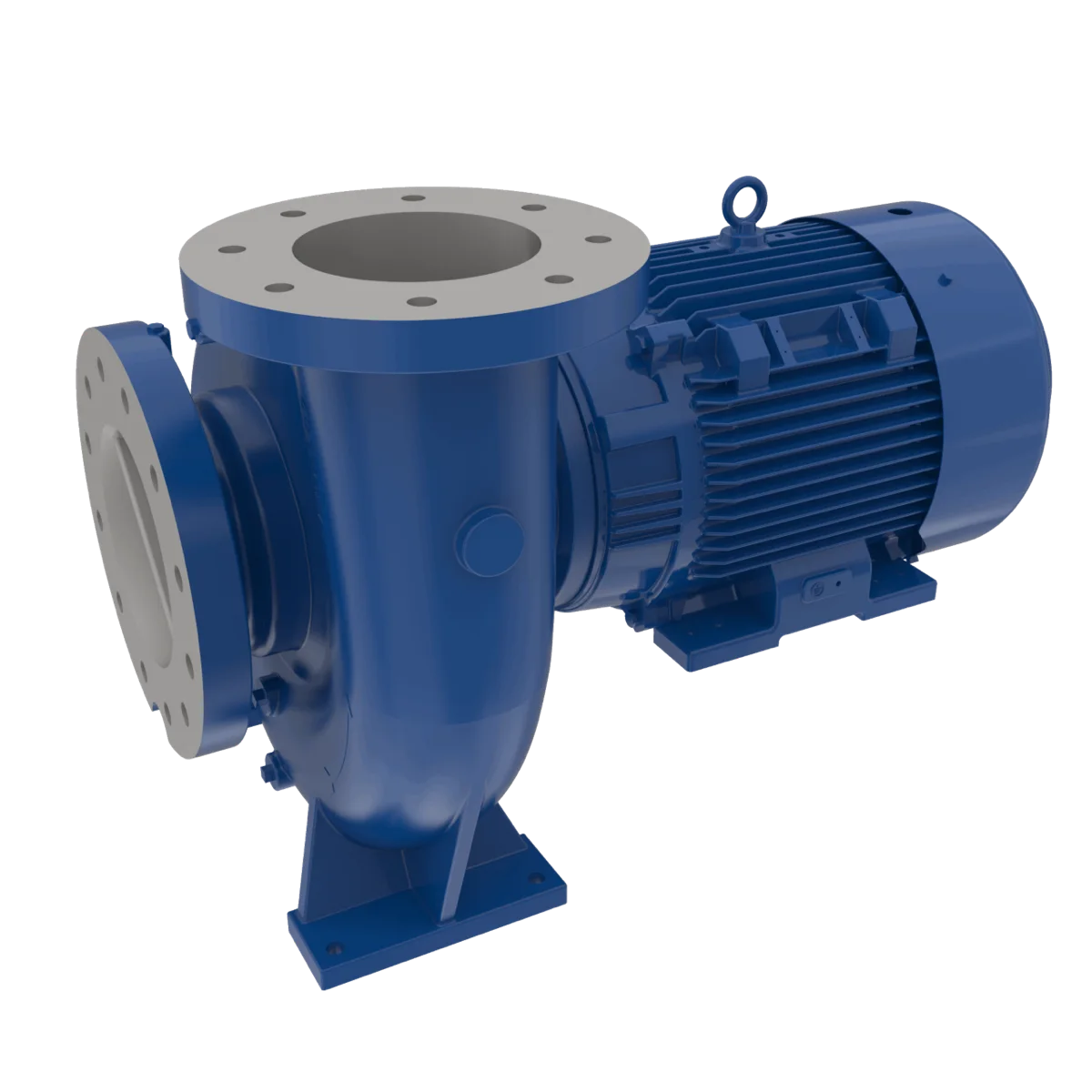

Aurora 3800 Series Single Stage End Suction Pumps (Models 3801 and 3804)
Pentair's Aurora 3800 Series is a single-stage end suction centrifugal pump family offered in two models, 3801 (close coupled) and 3804 (flexible coupled, frame mounted), listed by Pentair Commercial Pool for pools, spas and other water applications.
Available through FreyTech
Best fit: Commercial pool and spa recirculation, Water features and other water applications, Building services, pressure boosting and chilled water (per Aurora brand page)
View product: Aurora 3800 Series Single Stage End Suction Pumps (Models 3801 and 3804)Request an assessment for Aurora 3800 Series Single Stage End Suction Pumps (Models 3801 and 3804)
Aurora (a Pentair brand)Pumps, Circulation and Flow Control

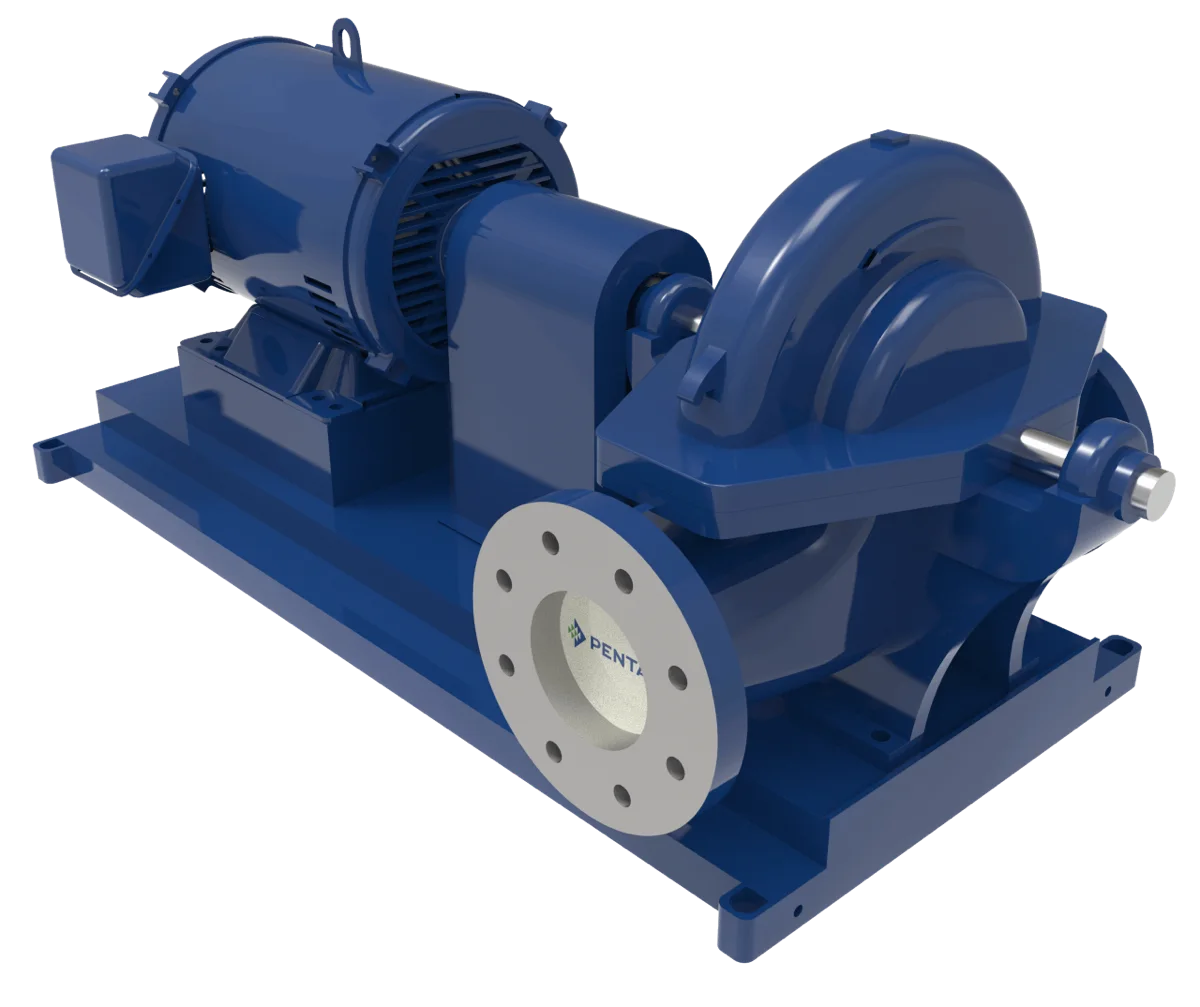

Aurora 410 Series Single Stage Split Case Pumps (Models 411, 412, 413)
Pentair's Aurora 410 Series single stage split case pumps, listed by Pentair Commercial Pool with the 3800 Series for pools, spas and water applications, cover capacities to 15,000 GPM and heads to 663 feet in horizontal (411) and space-saving vertical (412, 413) models.
Available through FreyTech
Best fit: Commercial pool and spa recirculation (per Pentair Commercial Pool listing), Cooling, heating and air conditioning service, High pressure water service
View product: Aurora 410 Series Single Stage Split Case Pumps (Models 411, 412, 413)Request an assessment for Aurora 410 Series Single Stage Split Case Pumps (Models 411, 412, 413)
Speck PumpsPumps, Circulation and Flow Control

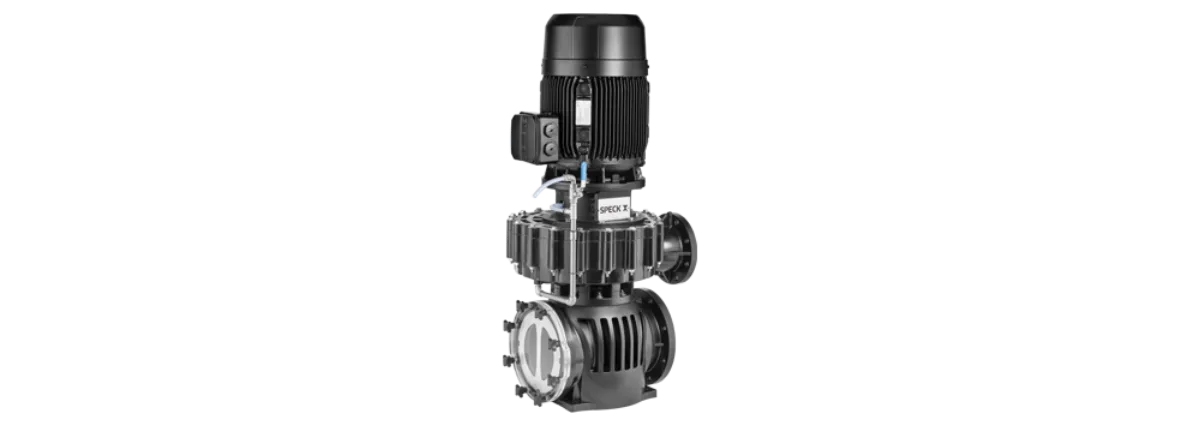

BADU Block Multi Series
The BADU Block Multi is the vertical, space-saving version of Speck's plastic commercial pump: the motor sits above the wet end and the discharge can be rotated before installation, so it fits tight or retrofit equipment rooms.
Request availability
Best fit: Commercial pool recirculation in limited floor space, Retrofit of existing pump pads, Saline pools and water parks
View product: BADU Block Multi Series Request availability for BADU Block Multi Series
Mer-Made Filter, Inc.Pumps, Circulation and Flow Control

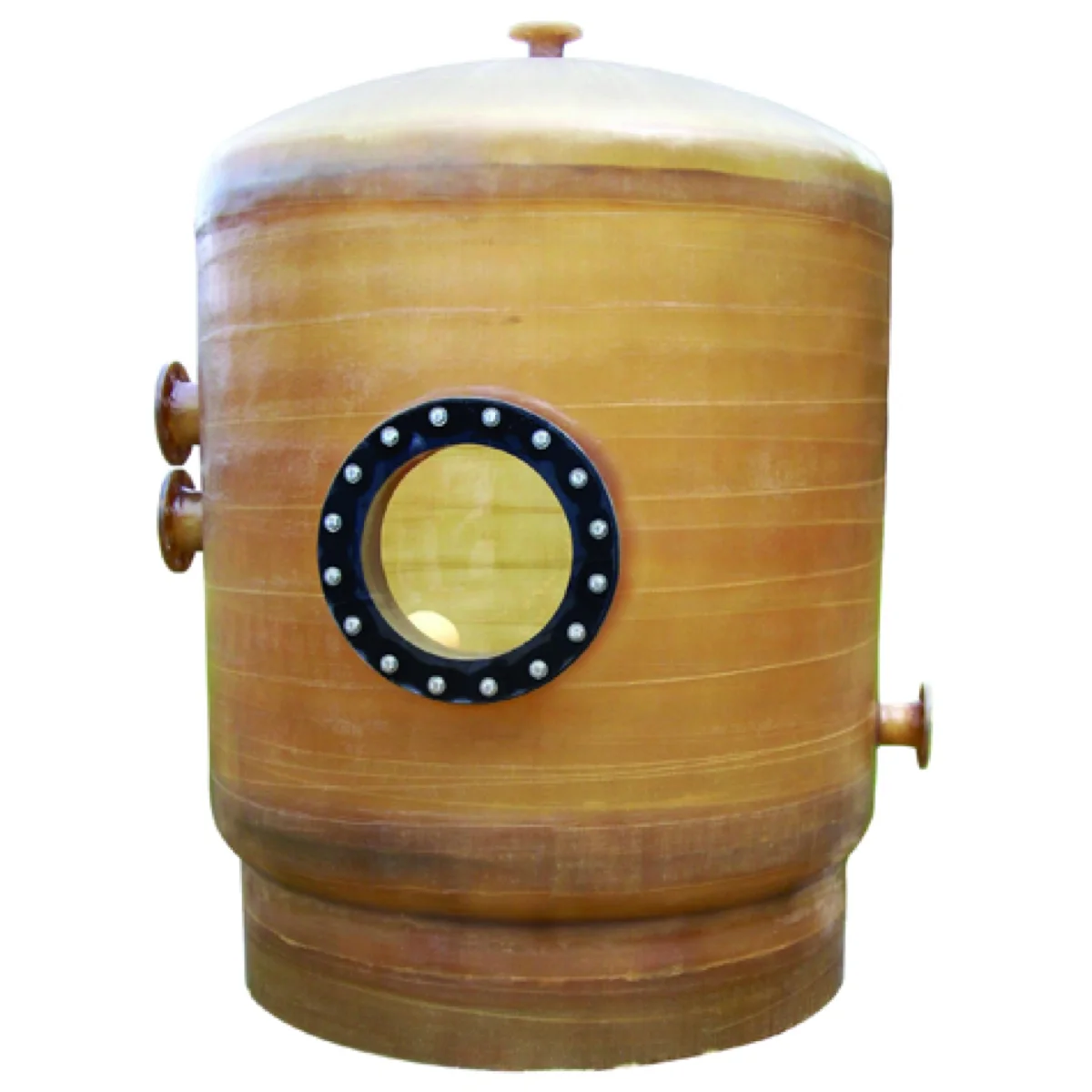

Fiberglass surge and balance tanks
Mer-Made builds closed-top vertical and horizontal fiberglass surge tanks, plus custom open-top rectangular and segmented tanks, to provide surge capacity for gutter pools. Each tank is individually engineered and hydrostatically tested at the factory.
Available through FreyTech
Best fit: Surge storage for gutter pools, Balance/collector tank between main drain, gutters and pump suction, Stacked or multiple-tank surge systems with equalization fittings
View product: Fiberglass surge and balance tanks Request an assessment for Fiberglass surge and balance tanks
Mer-Made Filter, Inc.Pumps, Circulation and Flow Control

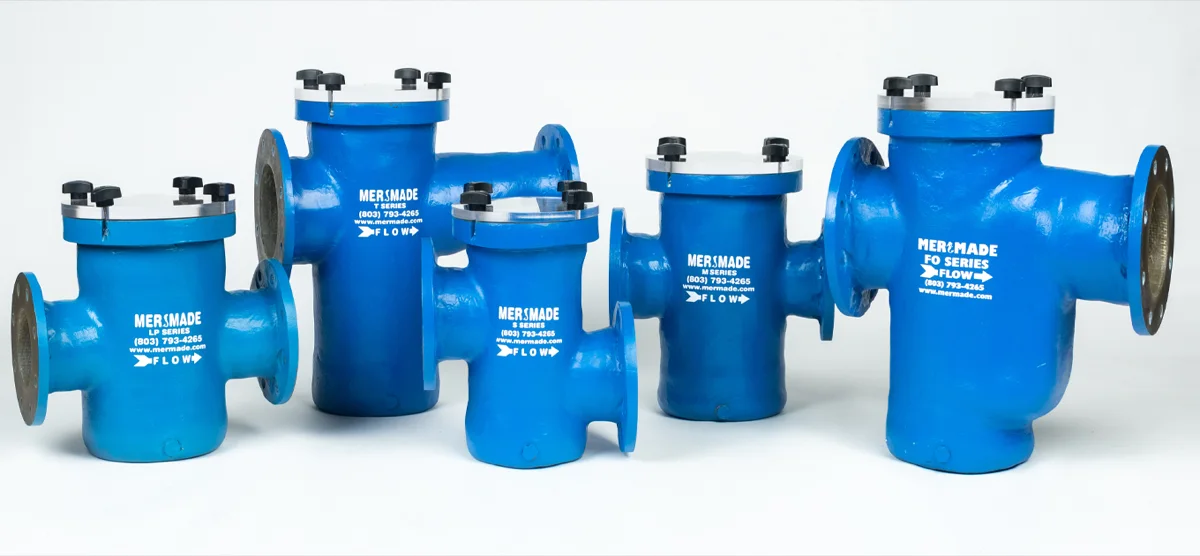

Fiberglass-reinforced basket strainers
Mer-Made's FRP basket strainers protect commercial pool pumps from debris. The line includes the FO (full-outlet), T-Style and LP (low-profile) housings, plus M-Series and S-Series direct replacements for Marlow and Sta-Rite cast-iron strainers.
Available through FreyTech
Best fit: Pump suction protection on commercial pool circulation systems, Replacement of cast-iron pump strainers, Industrial and corrosive fluid straining with upgraded resins and basket alloys
View product: Fiberglass-reinforced basket strainers Request an assessment for Fiberglass-reinforced basket strainers
GrundfosPumps, Circulation and Flow Control
KP / KPV double-suction split-case pumps
PACO KP is Grundfos' horizontal axially split-case, double-suction centrifugal pump, and the KPV is the vertical version for smaller footprints.
Available through FreyTech
Best fit: Large natatorium and water park recirculation, High-flow feature systems, Replacement of existing split-case pumps
View product: KP / KPV double-suction split-case pumps Request an assessment for KP / KPV double-suction split-case pumps
GrundfosPumps, Circulation and Flow Control
LC / LCV close-coupled end-suction pumps
PACO LC pumps are Grundfos' close-coupled, single-stage end-suction centrifugal pumps; the LCV is the same wet end mounted vertically to save floor space.
Available through FreyTech
Best fit: Main recirculation pumps, Feature and slide pumps, Replacement of existing end-suction pumps
View product: LC / LCV close-coupled end-suction pumps Request an assessment for LC / LCV close-coupled end-suction pumps
Mer-Made Filter, Inc.Pumps, Circulation and Flow Control

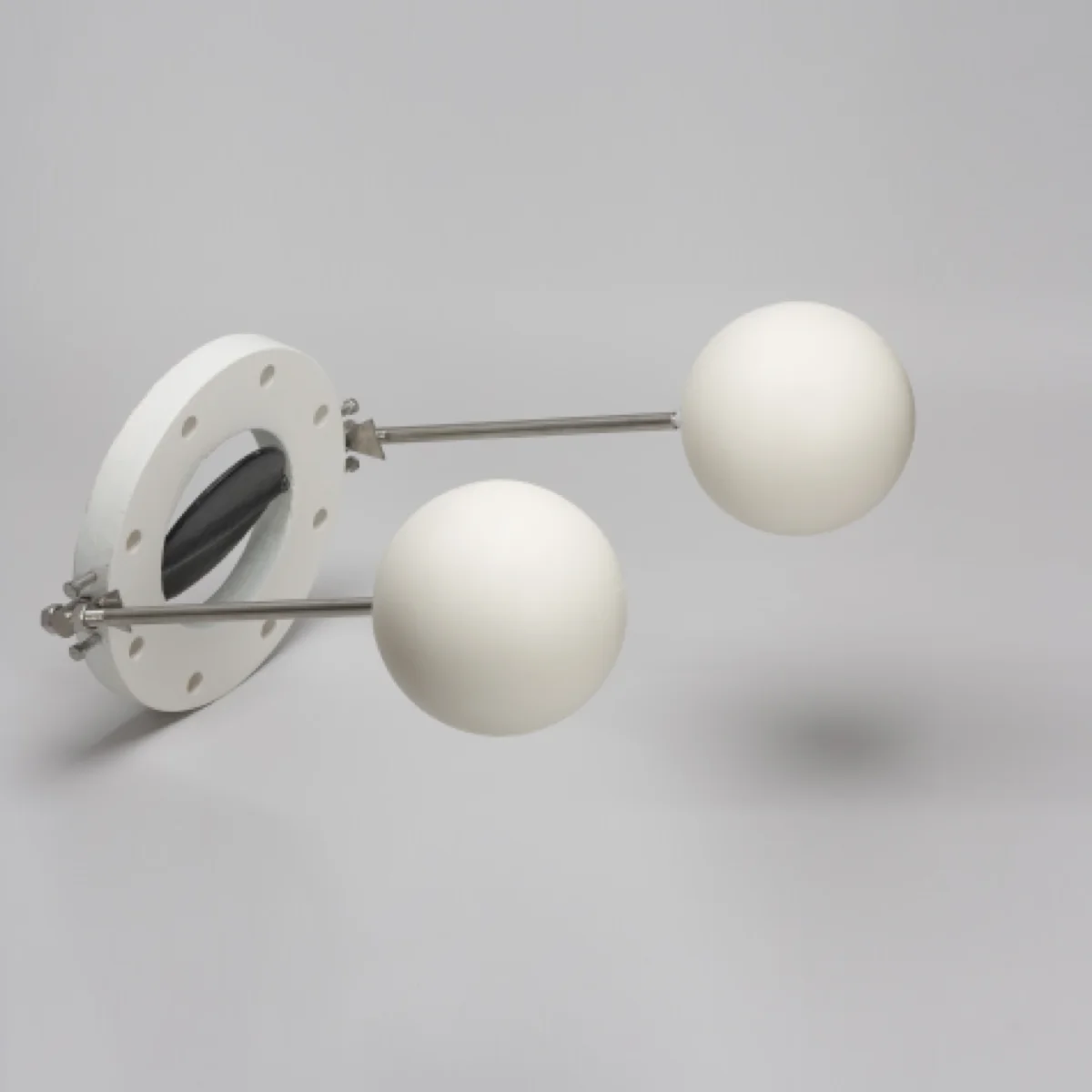

Modulating float valves
Mer-Made modulating float valves throttle the main drain line as surge tank level rises so gutter water can flow to the tank. They are deliberately not tight-closing and pass some main drain flow even when 'closed'. Sizes 4 to 12 in.
Available through FreyTech
Best fit: Surge tank main drain flow modulation, Gravity-flow main drain lines, Inline main drain lines connected to pump suction (XWB models)
View product: Modulating float valves Request an assessment for Modulating float valves
Speck PumpsPumps, Circulation and Flow Control

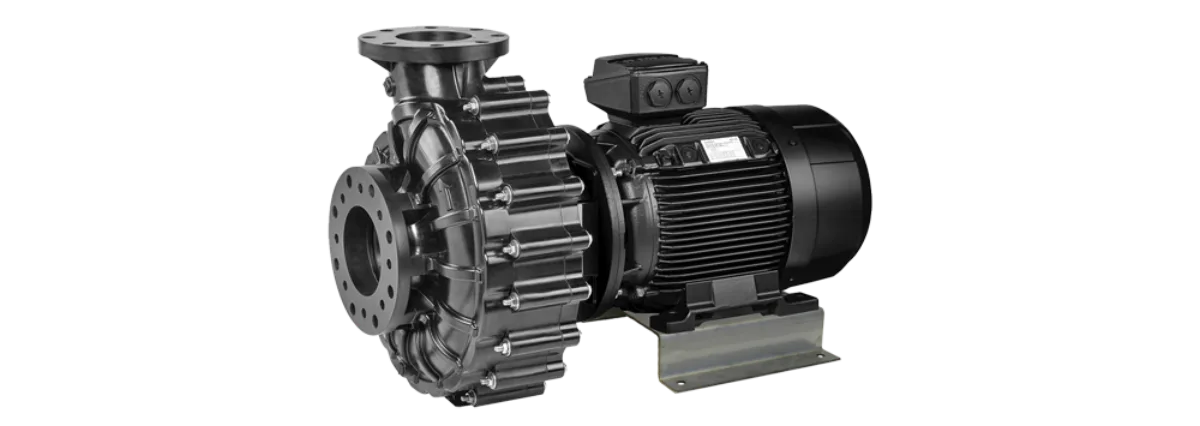

Normblock Multi Series (incl. 80/200)
The Normblock Multi is Speck's horizontal, single-stage commercial pool pump with a housing molded from high-performance plastic, so it runs in salt and high-chloride water without internal coatings.
Request availability
Best fit: Commercial pool recirculation, Saline and salt-chlorinated pools, Water parks and fountains
View product: Normblock Multi Series (incl. 80/200)Request availability for Normblock Multi Series (incl. 80/200)
PentairPumps, Circulation and Flow Control

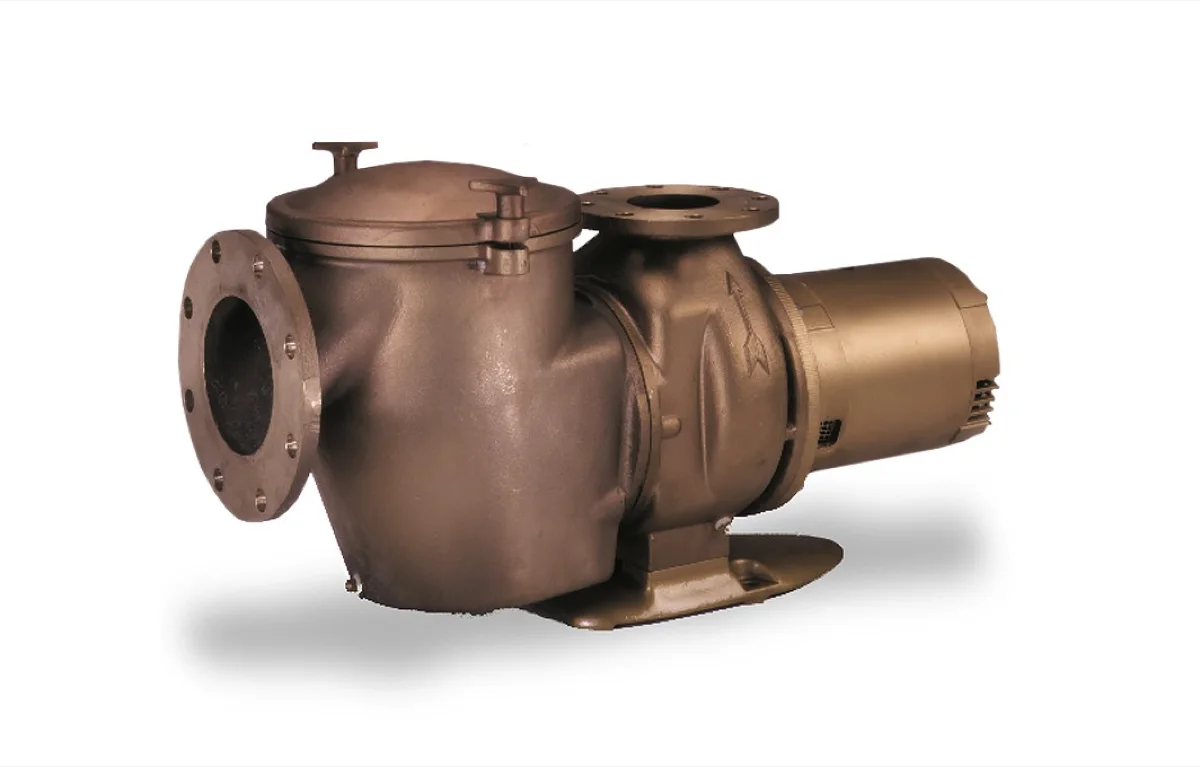

Pentair C Series High Performance Commercial Bronze Pumps
Pentair's C Series is a heavy-duty, close-coupled all-bronze commercial pump for large pools, fountains and water attractions, available from 5 to 20 HP with flows to 740 GPM, with or without a bronze hair-and-lint strainer with stainless steel basket.
Available through FreyTech
Best fit: Commercial swimming pool recirculation, Fountains and water attractions, High-end residential pools (per Pentair brochure)
View product: Pentair C Series High Performance Commercial Bronze Pumps Request an assessment for Pentair C Series High Performance Commercial Bronze Pumps
PentairPumps, Circulation and Flow Control

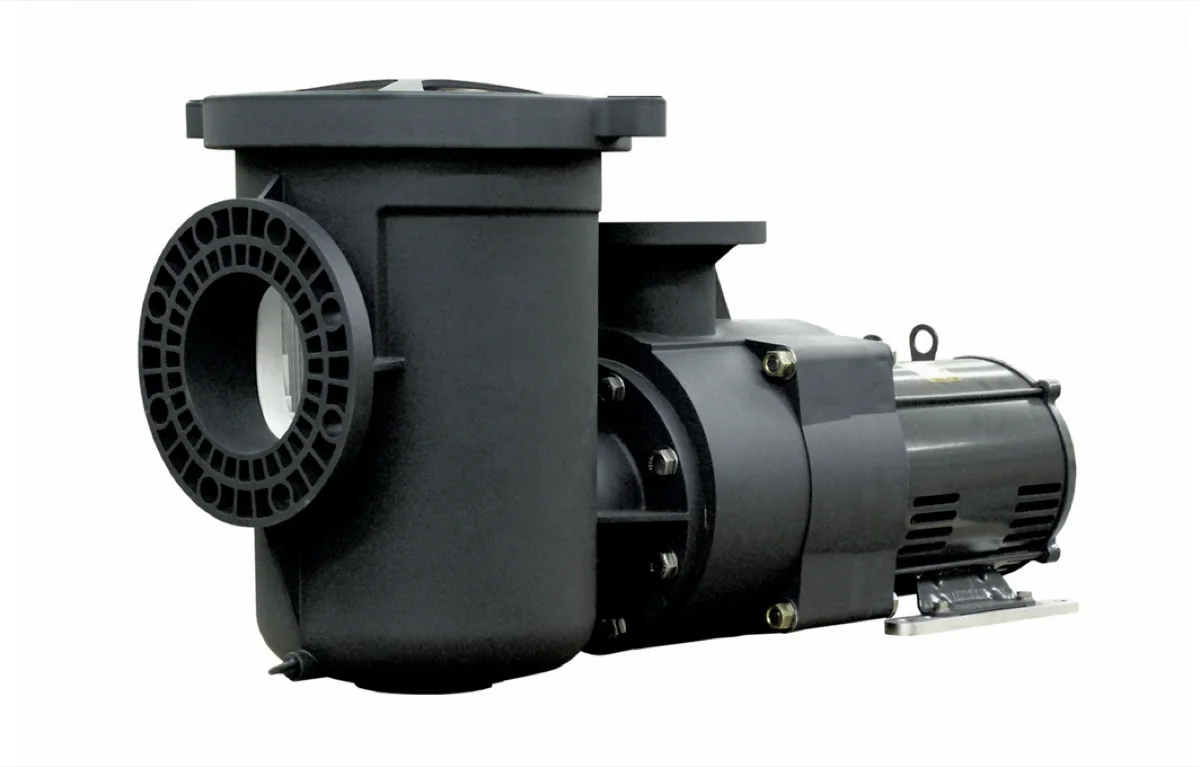

Pentair EQ Series High Performance Commercial Pump
Pentair's EQ Series is an all-plastic (PPO resin), close-coupled, self-priming commercial pool pump available from 3 to 15 HP with flows to 800 GPM, with or without a 6 in x 4 in hair-and-lint strainer pot.
Available through FreyTech
Best fit: Commercial swimming pool recirculation, Waterfalls and water features (EQW WaterFall models), Other commercial water applications
View product: Pentair EQ Series High Performance Commercial Pump Request an assessment for Pentair EQ Series High Performance Commercial Pump
PentairPumps, Circulation and Flow Control

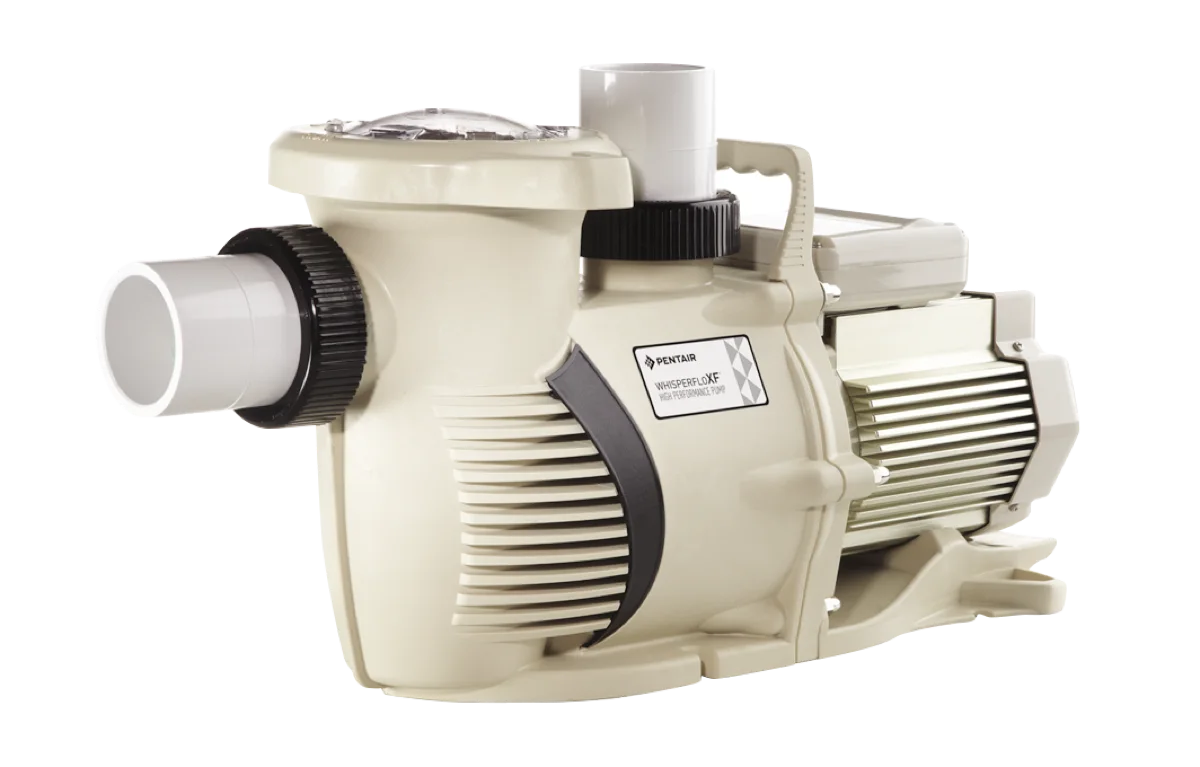

Pentair WhisperFloXF High Performance Commercial Pool Pump
Pentair's WhisperFloXF is a hydraulically advanced, high-capacity self-priming pump with flows in excess of 200 GPM, offered from 2 to 5 HP in single-phase, TEFC and three-phase versions and sold as a drop-in replacement for WhisperFlo pumps.
Available through FreyTech
Best fit: Commercial pool and spa recirculation, Water features, waterfalls and negative edges, Slides and feature pumps
View product: Pentair WhisperFloXF High Performance Commercial Pool Pump Request an assessment for Pentair WhisperFloXF High Performance Commercial Pool Pump
PentairPumps, Circulation and Flow Control

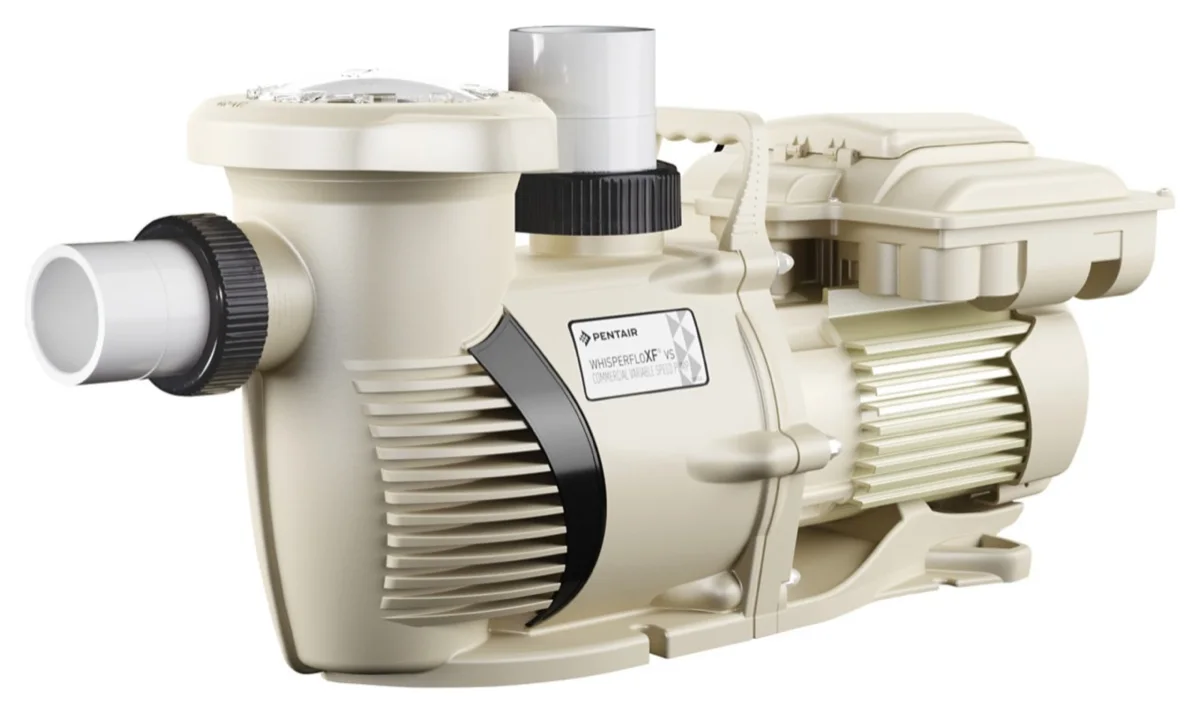

Pentair WhisperFloXF VS 5 HP Commercial Variable Speed Pump
Pentair describes the WhisperFloXF VS as the first five-horsepower variable-speed pool pump that runs on single-phase or three-phase power, with an integrated motor/drive, four programmable speeds from 300 to 3450 RPM and NSF 50 / UL 1081 certification.
Available through FreyTech
Best fit: Commercial pool recirculation for HMAC properties, Large residential and small commercial pools, Variable-flow filtration with automation or relay control
View product: Pentair WhisperFloXF VS 5 HP Commercial Variable Speed Pump Request an assessment for Pentair WhisperFloXF VS 5 HP Commercial Variable Speed Pump

Filter the full library to pumps & flow · Manufacturers in this category: Aurora (a Pentair brand), Speck Pumps, Mer-Made Filter, Inc., Grundfos, Pentair

Evaluation with the engineer of record
Supply and installation coordination
Integration of VFD and flow monitoring with controls
Replacement matching and parts

Resource library filtered to pumps & flow

Find replacement equipment

Next step

Request a Facility Assessment

Tell us about the pool volume, current pumps, and any flow or energy concerns.

Serving commercial aquatic facilities across New York State.

Request a Facility Assessment Talk to a Water-Quality Specialist

Prefer to talk? 1-800-724-2770
